Energy-efficient: compared with conventional lighting, LED consumes up to 85% less energy.
Long life: last to 60,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.
Weather proof: LED module reaches IP68, power supply reaches IP67, which provide maximum performance against rain, moisture, cold, corrosion and dust.
Wide voltage range: AC220V type can operate within 90-260V range.
SMT technology: surface mounting technology keeps low working temperature of LED chip.
Modular pluggable technology, tool-free onsite maintenance.
Honeycomb briquette burning effect and the whole structure cooling technology.
“Ultra Robust” module technology, single LED's or unit’s damage doesn’t affect other units’ current.
Multi-circuit constant-current driver, single module hot-plugable.
Ergonomic light distribution to achieve even illuminating effect.
Free serialization and various power solutions.
Various application as tunnel lighting, street lighting or mining lighting, etc.
Applicable height:
Specification:
|
Standards |
IEC60598-1, IEC60598-2-1, IEC61000-3-2, IEC61347-2-3 |
||
|
Rated Voltage |
AC/DC 220V(*1) 50/60Hz |
||
|
Rated Wattage |
100W |
150W |
200W |
|
Luminous Flux |
10000Lm |
15000Lm |
20000Lm |
|
Housing Type |
I |
II |
III |
|
Color Temperature |
3000-6000K |
||
|
IP Grade |
LED module IP68, power supply IP67 |
||
|
Corrosion-proof Grade |
WF2 |
||
|
Ambient temperature |
-20°C~ +60°(-40°C optional) |
||
|
Light Distribution Curve |
Bat-wing |
||
|
Surge Voltage |
10KV |
||
|
Peak Lighting Angle |
125° |
||
|
Wind Index |
Force 12 |
||
|
Cable Entry |
G3/4" threads, for cables Φ10mm~Φ14mm（*2） |
||
|
Terminals |
wires≤2.5mm² |
||
|
Installation |
Bracket(tunnel, street, mining) |
||
|
Weight(Kg) |
6.3 |
7.3 |
8.3 |

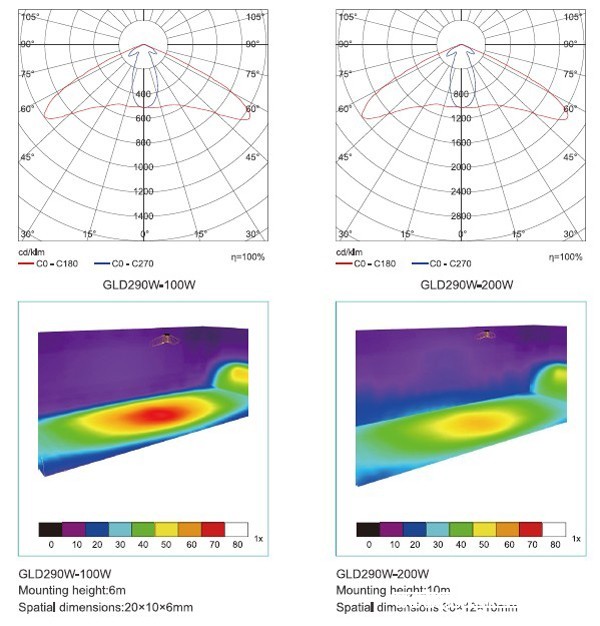

Light Distribution:

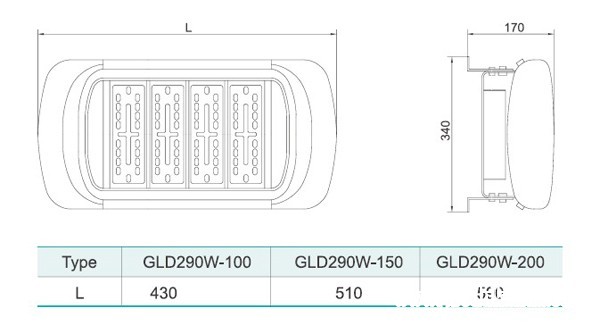

Dimension:
