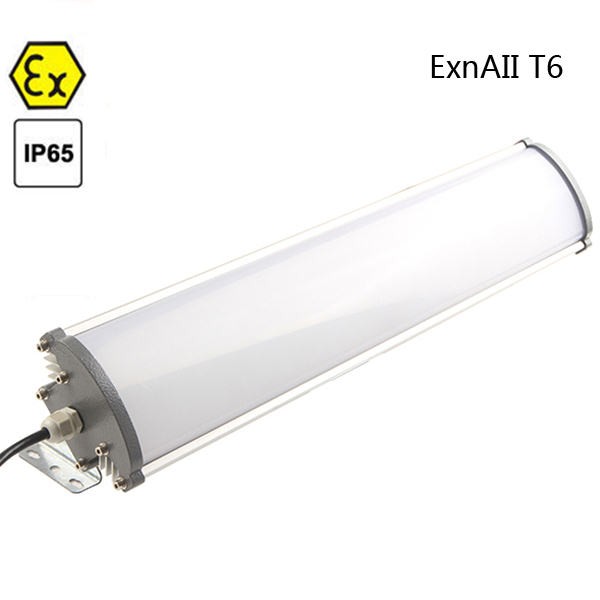

Energy-efficient: compared with conventional lighting, LED consumes up to 85% less energy.
Long life: last to 60,000h rated life or more, 50 times of incandescent bulbs, 8 times of fluorescent lamps.
Wide voltage range: AC220V type can operate within 90-260V range.
Good EMC: excellent electromagnetic compatibility and anti-interference.
SMT technology: surface mounting technology keeps low working temperature of LED chip.
Dual-chamber structure: independent chambers for light source, driver and wiring ensure longer driver life.
Standard material: copper-free Aluminum housing, surface with anodic coating, impact-resistant PC cover and stainless steel external hardware.
The transparent PC cover contains light diffusion agent, it's anti-UV, impact-resistant, and for ambient temperatures of -40°C to +60°C.
Application:
Explosive gas atmosphere: Zone 2;
Explosive gas atmosphere of IIA, IIB and IIC; T1-6;
Applicable height：BLD180-18W 2.0--4.0m
BLD180-36W 3.0--6.0m
Installation Distance:BLD180-18W 4.0--6.0m
BLD180-36W 5.0--8.0m
Widely used in harsh and hazardous environments and industries of Petroleum Industry, Petrochemical Industry, Shipping Industry, Mining Industry, Military Industry, Metallurgical Industry, Power Generation Industry, Power Transmission Industry, Railway Industry, Public Security and Fire Fighting, etc.
|
Classification |
Group II Category 3G/2D |
||
|
Installation |
Zone 2 (Gas) & Zone 21 - Zone 22 (Dust) |
||
|
Standards |
IEC60079-0, IEC60079-1, EN60079-0, EN60079-1, IEC60079-31 |
||
|
Ex-mark |
ExnAII T6 Gc/ExtⅢBT85℃ Db |
||
|
Rated Voltage |
AC/DC 220V(*1) 50/60Hz |
||
|
Housing Type |
I |
II |
III |
|
Rated Wattage |
9W |
18W |
36W |
|
Luminous Flux |
900Lm |
1800Lm |
3600Lm |
|
Color Temperature |
5000-5500K(3000K optional) |
||
|
IP Grade |
IP65 |
||
|
Corrosion-proof Grade |
WF2 |
||
|
Ambient temperature |
-20°C~ +60°(-40°C optional) |
||
|
Cable Entry |
G3/4" threads, for cables Φ10mm~Φ14mm（*2） |
||
|
Terminals |
wires≤2.5mm² |
||
|
Installation |
Bracket(Wall/Ceiling/Pendant pole/Pedant chain/Bent pole/Fence/Flange) |
||
Light Distribution:
Dimension:
