SMARTGEN CONTROLLER

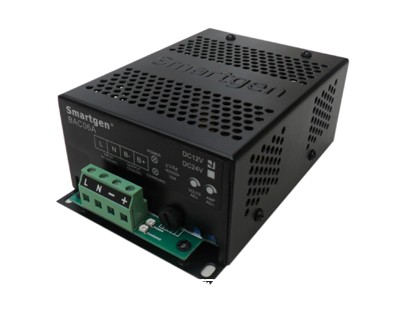

Smartgen Battery Charger 24 Vdc
PERFORMANCE AND CHARACTERISTICS
1.Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
2.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
3.With short circuit and reverse connection protection;
4.Charging voltage and current can be adjusted via potentiometer on the spot;
5.Suitable for 12V and 24V batteries, corresponding types are BAC06A-12V and BAC06A-24V;
6.LED display: Power indication and charging indication;
SPECIFICATION
| Battery Voltage | 12V | 24V |
| Max. Charge Current | 6A | 3A |
| Charge Voltage Range | (13~14.5)V | (26~29)V |
| Charge Current Range | (3~7)A | (1.5~3.5)A |
| AC Voltage | (95~280)VAC | |
| AC Frequency | 50 Hz/60Hz | |
| Power Consumption | 120W | 115W |
| No-Load Power Consumption | Less than 3W | |
| Efficiency | More than 80% | More than 85% |
| Working Temperature | (-40~60)°C | |
| Storage Temperature | (-40~85)°C | |
| Weight | 0.65kg | |
| Case Dimensions | 143 mm×92 mm×52mm | |
